Bulk No. | A mm | B mm | C mm | D mm |
0506865 | 28(1-1/8") | 49(1-15/16") | 67(2-5/8") | 13(1/2") |

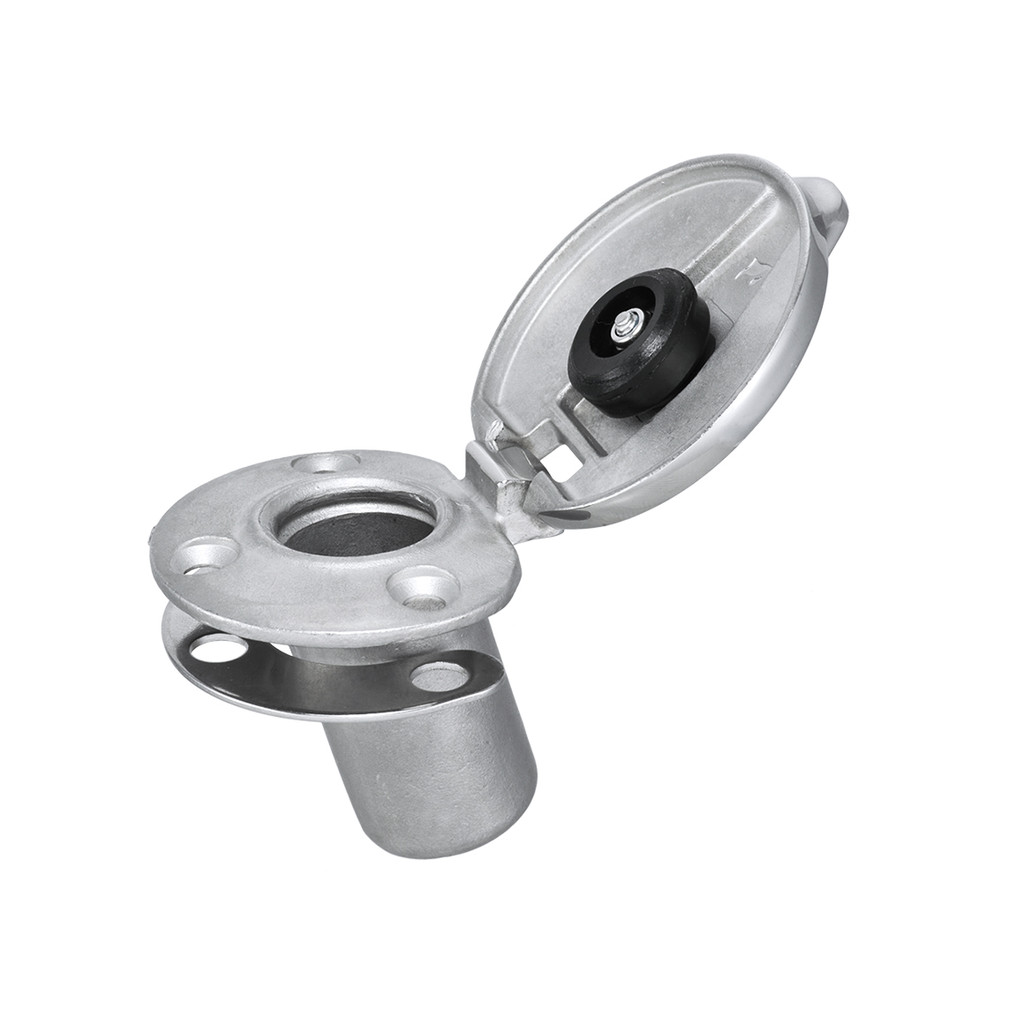

Stainless Steel 316
- Designed with a 15° angle to create self-tensioning of poles, ensuring secure installment.
- Anti-rattle design incorporates a rubber bushing under the cap hinge to ensure that the cap stays in the open or closed position underway.
- Cap is designed to prevent water flowing directly into the socket. However, this socket is not self-draining and must be maintained to prevent corrosion and rusting that may result from sitting water.
- Requires a 28mm (1-1/8") installation hole with a 15° angle.
- Included U-shaped backing plate is required for installation and must be thru-bolted to prevent vessel damage and/or injury.
- Screw size M5 or #10.
- Stainless steel 304 spacer and locking nut are included.
