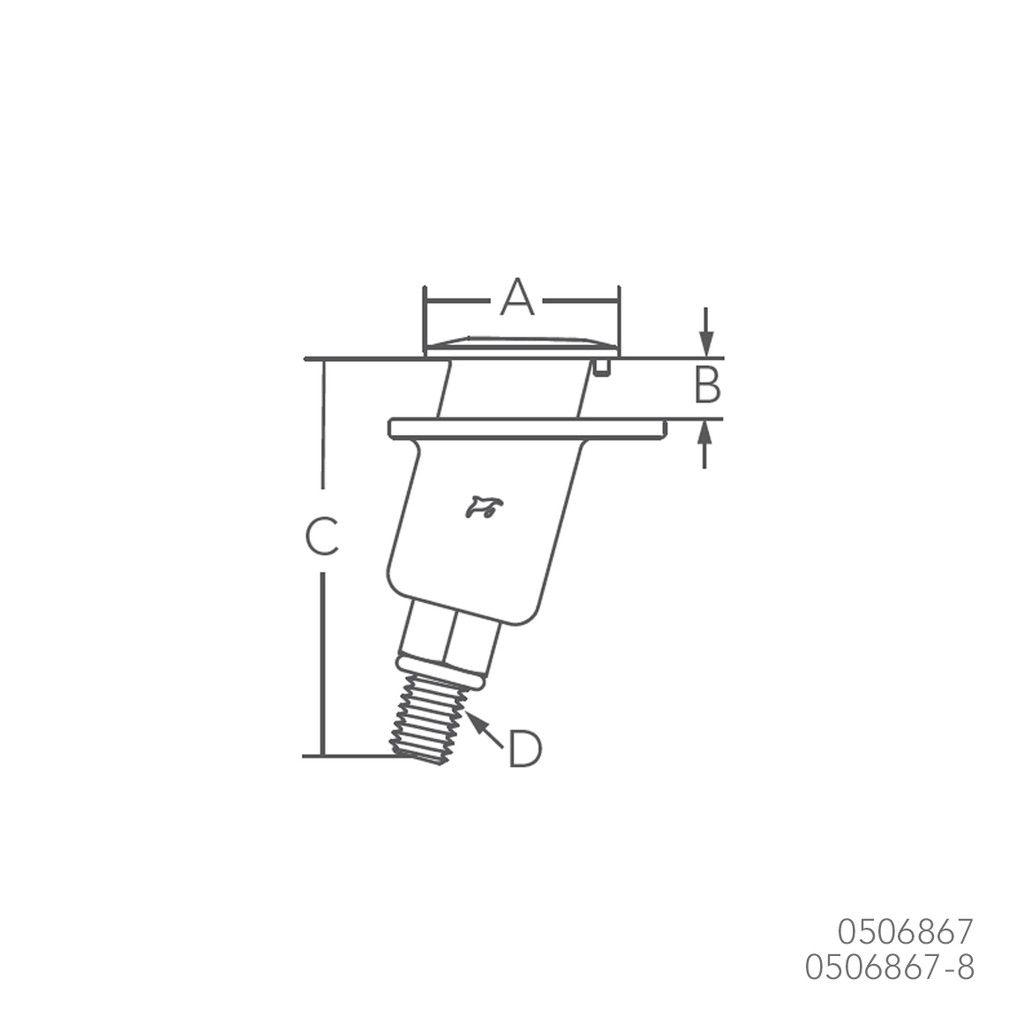

Bulk No. | Face Size | Backing Cup | A mm | B mm | C mm | D |
0506867 | Small | Standard | 40(1-9/16") | 13~22(1/2"~7/8") | 85(3-3/8") | 1/2"-13 |
Stainless Steel 316
- Designed with a 15° angle to create self-tensioning of poles, ensuring secure installment.
- Self-draining design incorporates a threaded barb for 1/2" draining hose.
- Included seal gasket eliminates the need for caulking.
- Wider backing cup distributes stress over a larger area when in use.

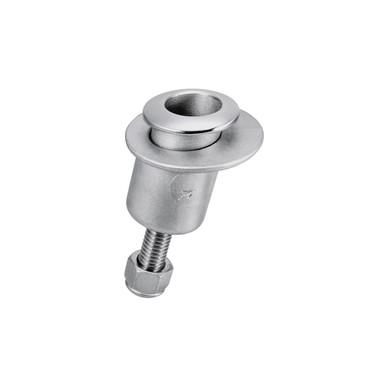

- 0506867: Small face with low profile, ideal for boats with narrow gunnels. Requires a 28mm (1-1/8") installation hole with a 15° angle and notch hole.
- Shallow backing cup is designed to accommodate thick laminate installation sites.
- Stainless steel 304 locking nut is included.
