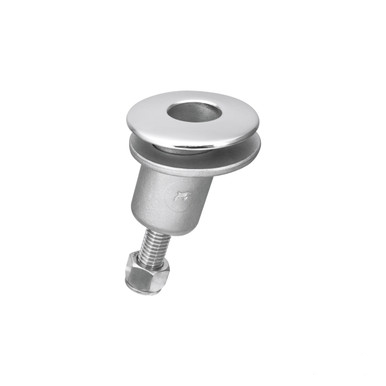

Bulk No. | Face Size | Backing Cup | A mm | B mm | C mm | D |
0806868 | Big | Standard | 58(2-1/4") | 9~14(3/8"~9/16") | 85(3-3/8") | 1/2"-13 |
Stainless Steel 316

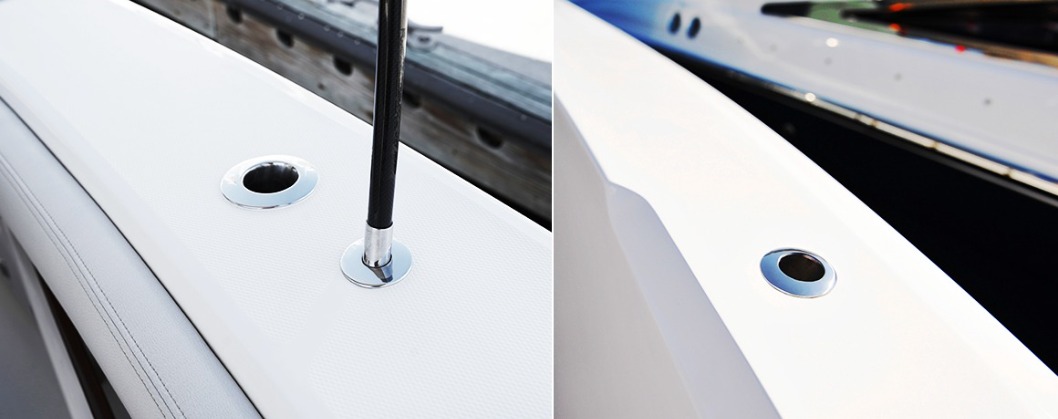

- Designed with a 15° angle to create self-tensioning of poles, ensuring secure installment.
- Self-draining design incorporates a threaded barb for 1/2" draining hose.
- Included seal gasket eliminates the need for caulking.
- Wider backing cup distributes stress over a larger area when in use.
- 0806868: Wider flange provides better coverage of the installation hole. Requires a straight 35mm (1-3/8") diameter installation hole and notch hole.
- Shallow backing cup is designed to accommodate thick laminate installation sites.
- Stainless steel 304 locking nut is included.
